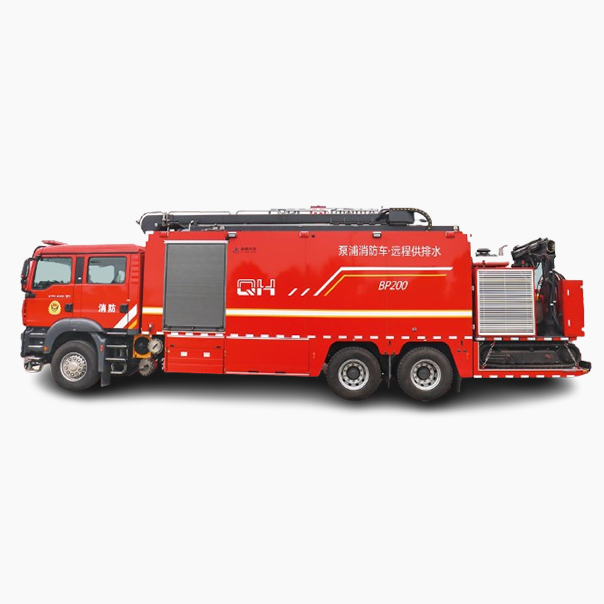

The remote water supply pump group fire truck is mainly used for rapid water intake and supply within a range of 1200 meters from the fire scene of medium or large fires in water rich areas, with a maximum water intake depth of not less than 30 meters. It meets the needs of fire water supply and can also be applied in urban drainage, mine drainage and other fields.
The vehicle is modified from the Class II chassis of the ZZ5356V524MF5 special operation vehicle produced by China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. The upper part mainly consists of a water belt compartment, a collection belt mechanism, a rear sinking platform and module loading and unloading system, a tracked self-propelled water absorption module, a pressurization system, on-board equipment, additional lighting and signal systems, etc. The vehicle is highly integrated and has functions such as water hose installation and management, water intake/drainage, and secondary pressurization; The system has a high degree of automation, good mobility, real-time monitoring of work status, and fast deployment and recovery speed, greatly improving the efficiency of fire rescue; Widely used in firefighting, emergency drainage, water source transportation and other operations, it is an essential firefighting equipment for petrochemical enterprises, ports, airports and urban firefighting.
PARAMETER | Names | Parameters |
1 | Dimensions (mm): Length x Width x Height | 11980mmx2510mmx4000 |
2 | Chassis model | Sitrak ZZ5356V524MF5 |
3 | Wheel base(mm) | 5800+1400 |
4 | Allowable total mass at full load (kg) | 35000 |
5 | Emission standard | GB VI |
6 | Engine power (kWV) | ≥338 |
7 | Passengers (including driver)( persons ) | 2+4 |
8 | Water supply flow (L /S)/ pressure (MPa) | 200/0.8 |
9 | Truck-mounted water belt diameter (mmVlength (m) | 300/1200 |
10 | Booster pump model | Hale 8FC |
11 | Floating boat pump flow (LSVpressure (MPa) | 200/0.4 |
12 | Receiving and tape machine control mode | Full-automatic/manual(switchable) |
13 | The walking speed of the water-extraction robot low speed (km/h) / high speed(km/h) | 3.2 |
14 | Maximum gradability of water-extraction robot (°) | 25 |
15 | Maximum lifting capacity of water-extraction robot crane (T.m) | 2 |
16 | Maximum lifting height (m)maximum telescopic distance (m) | 3m/8m |
17 | Lifting capacity at maximum reach (Kg) | 200 |
