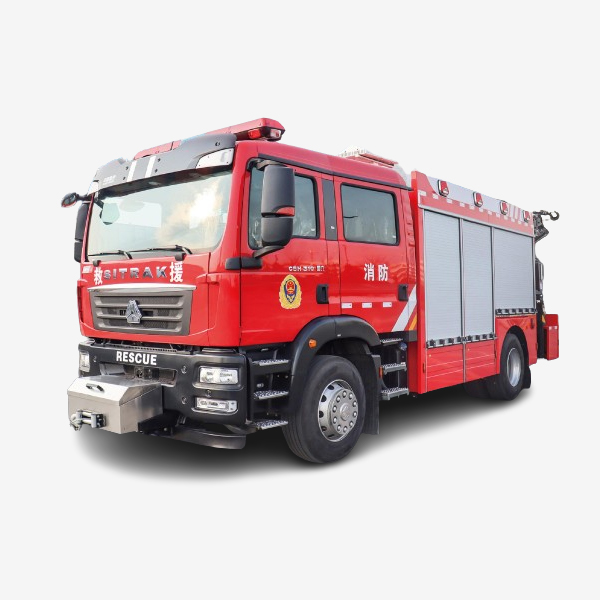

The QHV5160TXFJY100/SD6 emergency rescue fire truck is a fire truck with independent intellectual property rights independently developed by our company using new technologies, processes, and materials. The vehicle is modified from the ZZ5206N471GF5 chassis (National V emission) produced by China National Heavy Duty Truck Group Jinan Truck Co., Ltd. Equipped with XCMG SQZ105D on-board crane, American champion N16800XF-24V traction winch, Shanghai Bocan lifting lighting system, Honda EH3160 generator and other emergency rescue equipment. The vehicle has a reasonable structure and layout, and is easy to operate and maintain. It is suitable for professional fire brigades such as large and medium-sized city fire brigades, petrochemical enterprise fire brigades, and airport fire brigades, and is used to handle emergency rescue accidents.
PARAMETER | Names | Parameters |
1 | Dimensions (mm): Length x Width x Height | 8835x2500x3500 |
2 | Chassis model | ZZ5206N471GF5 |
3 | Driving form | 4x2 |
4 | Wheel base(mm) | 4500 |
5 | Engine type | MC07.31-60 |
6 | Engine power (kWV) | >225 |
7 | Emission standard | 国VI B |
8 | Full load total mass (kg) | 15950 |
9 | Maximum speed (km/h) | 105 |
10 | passengers(persons) | 2+4 |
11 | Generator (kVA) | 12.5 |
12 | Lighting power (kW) | 2kW(LED) |
13 | Rated tension of capstan(KN) | 70 |
14 | Maximum load of truck crane (kg) | 5000 |
