Production Description：

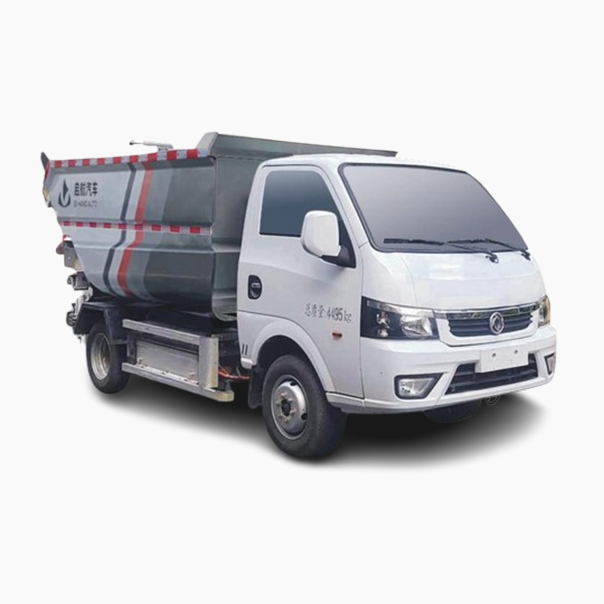

QHV5048ZZZEQBEV Pure electric self-loading waste collection truck is a high-end inteligent side-mounted garbage truck, suitable for thecolection and transfer of classified waste in towns, streets, and neighborhoods, with 120 or 240l standard plastic waste barrels, which carbe used in conjunction with large compression waste trucks (docking and unloading).
Performance Features：
1.. Excellent performance: the chassis has excelent performance, the power battery has large capacity and long range,the dumpster hasadvanced structure, the overall stress structure is desianed reliably, the side plate adoots one-time bending molding. the chassis adontbeamless design, the rigidity is matched reasonably, it is convenient to dump waste and easy to be cleaned.
2.Low operation cost: the garbage loading capacity of the dumpster is large, and the top of the dumpster is set with a pressure filing deviceso the net loading rate and transfer rate are high, and the operation cost is low.
3. Energy saving and consumption reduction: optimaly matched with the upper drive motor, so that the motor is always in the most efficienarea of operation. Adopt a quiet hydraulic oil pump and optimize the hydraulic system, so the noise is <65dB when the top loader is workingnormaly.
4. Convenient operation: manual and automatic operation modes can be freely selected, when selecting the automatic operation mode, it canrealize one-button automatic loading, a high degree of automation, simple and convenient operation, and high operational efficiency.
5. Environmentally friendly operation: the garbage truck box is a ship-shaped structure, completely eliminating sewage dripping, moreefficient and environmentallyfriendly operation.
6. Pure electric sanitation vehicles, low operating noise, no disturbances,low operating costs, no exhaust pollution, zero emission.
Items | Unit | Model & Parameters | ltems | Unit | Model & Parameters |
Product Model | QHV5048ZZZEQBEV | Product Model | QHV5048ZZZEQBEV | ||
Dimensions: Length x width x height | mm | 5180x1820x2280 | Chassis Battery Type | lithium iron phosphate(LFP) | |
Total Masses | kg | 4495 | Battery capacity | kwh | 61.824 |
Curb weight | kg | 3180 | Range (equal-speed method) | km | ≥265 |
Payload mass | kg | 1185 | Maximum Charging Time | h | 1.5 |
Chassis model/manufacturer | EQ1041TACEV3/Dongfeng | Effective volume of dumpster | M³ | 4.5 | |
Energy type | Pure Electric | Hydraulic system stabilizing pressure | MPa | 16 | |
Chassis drive motor power | kw | 110 | Types of standard trash cans that can be hung | 660L,240L,120L |
The pure electric dump truck is used for transporting the dregs on the construction site. As another regular passenger in the construction site, the electrification of concrete mixer truck has also attracted more attention. Because there are many similarities between the working conditions and the dump truck, the trial operation of the pure electric dump truck will bring a lot of valuable experience to the concrete mixer (such as mobile charging scheme), and the pure electric dump truck is worth paying attention to. It can be seen from the brief table that both agitators use lithium iron phosphate batteries and pure electric dump trucks
