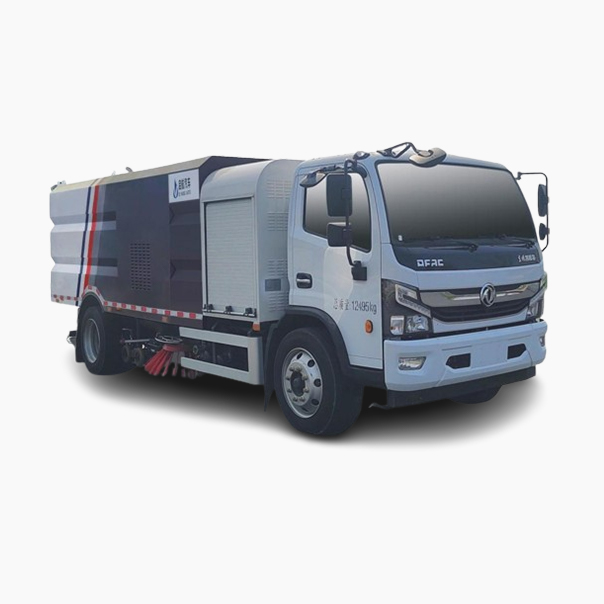

New energy cleaning and sweeping vehicle

OHV5128TXSEQBEV pure electric washing and sweeping vehicle is a new generation of high-quality washing and sweeping vehicle innovatively developed by Qihang Automobile. It is reliable, excellent in performance and advanced in technology. It is used for mechanized cleaning....

Production?Description:

OHV5128TXSEQBEV pure electric washing and sweeping vehicle is a new generation of high-quality washing and sweeping vehicle innovatively developed by Qihang Automobile. It is reliable, excellent in performance and advanced in technology. It is used for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations of urban roads, expressways, squares, airports, docks, tunnels, bridges, isolation walls, curbs and curb facades, especially for the cleaning of heavily polluted roads; It is a sanitation vehicle tailored for the high-end market by Qihang Automobile.

Performance Features

1. Ultra-long range: the operating range reaches 430km, with a full range of 4 hours on a full charge.

2. Faster operating speed: the sweeper can provide stronger suction under the same fan speed, which can operate at a faster speed, thus

improving the operating efficiency.

3. Wider usage range: the sweeper has strong suction power in strong washing operation mode, and its system static pressure is more than

15% higher than that of the same level of the industry sweeper, which is capable of handling more seriously polluted road conditions, and the

usage range is more extensive.

4. Rich operation modes: with "full wash sweeping", "left wash sweeping", "right wash sweeping", "full sweeping", "left sweeping", "right

sweeping" and other operation modes to choose from.

5. A high degree of intelligence: equipped with a central control screen, using CAN bus technology to control the actuator; equipped with a

working camera for real-time monitoring of the operating road surface.

6. Zero pollution, low noise, effective environmental protection, pure electric drive, and lower usage cost.

Items

Unit

Model & Parameters

ltems

Unit

Model & Parameters

Product Model


QHV5128TXSEQBEV

Product Model


QHV5128TXSEQBEV

Dimensions: Length x width x height

mm

7885x2365x2850

Range (equal-speed method)

km

430

Total Masses

kg

12495

Maximum Charging Time

h

1.5h

Curb weight

kg

9770

Maximum Sweeping Capacity

/h

60000

Payload mass

kg

2530

Sweep width

m

3.5

Chassis model/manufacturer


EQ1121KACEV/Dongfeng

Cleaning Truck

km/h

3-20

Energy type


Pure Electric

Sweeping efficiency

%

95

Chassis drive motor power

kw

220

Cleaning water pressureMpa

MPa

10

Chassis Battery Type


lithium iron phosphate(LFP)

Cleaning water pressureMpa

5

Battery capacity

kw

229.63

Dumpster volume

5
