Production Description:

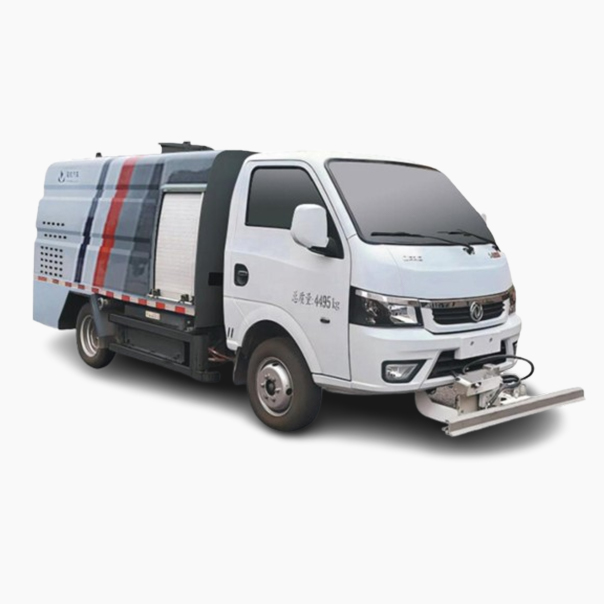

OHV5048TYHE0BEV Pure electric road maintenance vehicle is a multi-purpose miniature high-pressure cleaning vehicle introduced byOihang Auto for municipal urban management and sanitation. The vehicle is compact and flexible, beautiful, comfortable to drive, easy tooperate. reliable, simole to maintain, and suitable for use in the city's back streets and alevs, residentlal nelgnborhoods, etc. it can easlyand comtortably clean roads and sidewalks, and can effectivelv clean up the dead ends of sanitation and urban bil stickers
Performance Features
1. Large-capacity power battery, equipped with a heating function, meets the needs of the vehicle to be used in various environmentaconditions.2. Spot spraying device can be biased in al directions, and the high-pressure resistant handheld spray gun can effectively clean the dirtyand oily ground.3. The front water jeting frame is controlled by an electric actuator, which can realize left and right 18-degree rotaion,up and down 0-30-degree range of amplitude,the maximum cleaning width is up to 1.5 meters, and the water pressure of the operation svstem can be up tc8MPa.
4. Optimally matching the top-mounted drive motor, making the motor always run in the most efficient area. Adopt a direct drive programbetween the motor and high-pressure water pump to improve transmission efficiency and reduce failure points.5. The parts are developed in cooperation with first-class famous enterprises, and the high-pressure water pump adopts internationallfamous imported brands with hioh reliability, The clean water tank is made of 304 stainless steel, and the other upper structural parts areelectrophoresis + baking paint as a whole to eliminate rust and corrosion.6. Pure electric sanitation vehicles, ow operating noise, no disturbances, low operating costs, no exhaust pollution,zero emission.
Items | Unit | Model & Parameters | ltems | Unit | Model & Parameters |
Product Model | QHV5048TYHEQBEV | Product Model | QHV5048TYHEQBEV | ||
Dimensions: Length x width x height | mm | 5250,5610x1820x2280 | Battery capacity | kwh | 61.824 |
Total Masses | kg | 4495 | Range(equal-speed method) | km | ≥265 |
Curb weight | kg | 2890 | Maximum Charging Time | h | 1.5 |
Payload mass | kg | 1475 | Duration of continuous operation | h | >6 |
Chassis model/manufacturer | EQ1041TACEV3/Dongfeng | Front spray bar cleaning width | m | ≥1.5 | |
Energy type | Pure Electric | Maximum system water pressure | MPa | 8 | |
Chassis drive motor power | kw | 110 | Tank volume | M³ | 3 |
Chassis Battery Type | lithium iron phosphate(LFP) |
