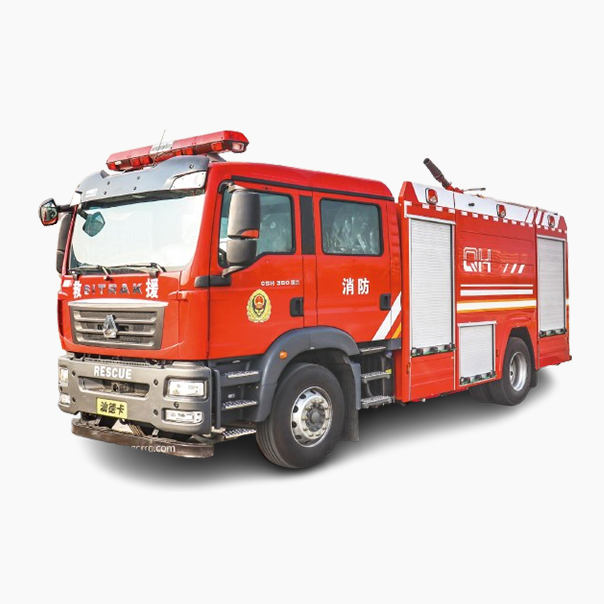

QHV5190GXFPM80/SG80/SD6 foam/water tank fire truck is refitted from the Class II chassis of ZZ5206N471GF5 special operation vehicle produced by China National Heavy Truck Group Jinan Commercial Vehicle Co., Ltd. The overall layout of the vehicle is reasonable, and the equipment compartment, tank, and pump room adopt a split structure with a novel and coordinated appearance. They are equipped with CB10/60-MBP fire pumps produced by Hill Manufacturing Co., Ltd. in the United States, and the roof cannon adopts PL8/48 fire cannon produced by Chengdu West Fire Machinery Co., Ltd. The structure is compact and the operation and maintenance are very convenient. This vehicle is equipped with a large amount of fire extinguishing agents and has a fast speed. It is an essential firefighting vehicle for petrochemical enterprises, oil terminals, oil fields, airports, as well as full-time fire brigades and enterprise fire brigades in large and medium-sized cities.
PARAMETER | Names | Parameters: the foam tanker fire truck | Parameters: the water tanker fire truck |
1 | Dimensions (mm): Length x Width x Height | 8275x2510x3560 | 8275x2510x3560 |
2 | Chassis model | ZZ5206N471GF5 | ZZ5206N471GF5 |
3 | Wheel base(mm) | 4500 | 4500 |
4 | Allowable total mass at full load (kg) | 19100 | 19100 |
5 | Emission standard | GB VI | GB VI |
6 | Engine power (kWV) | ≥257 | ≥257 |
7 | Passengers (including driver)( persons ) | 2+4 | 2+4 |
8 | Capacity of extinguishing agent (kg) | Water26000 Foam22000 | Water ≥ 8000 |
9 | Fire pump (L/s) | ≥60 | ≥60 |
10 | Fire monitor flow (L/s) | ≥48 | ≥48 |
