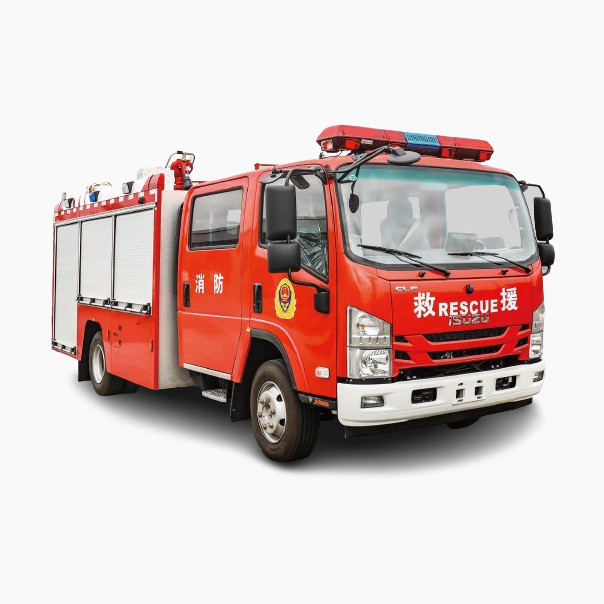

QHV5100GXFPM35/SG/35/W6 foam/water tank fire truck is a special chassis for Isuzu QL1110ANKWY4x2 fire truck, with emission standard of national V and engine power of 151kW. Equipped with CB10/30-XZ low-pressure vehicle fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd. Equipped with PS8/30W manual water cannon on the roof. The vehicle has reliable performance, applicable functions, and is easy to use. The entire vehicle control system adopts an electrical control system, and operation control panels are installed in both the cab and pump room. The buttons and switches are designed to be user-friendly and easy to operate.
PARAMETER | Names | Parameters: the foam tanker fire truck | Parameters: the water tanker fire truck |
1 | Dimensions (mm): Length x Width x Height | fire truck 7005x2370x3070 | 7005x2370x3070 |
2 | Chassis model | Isuzu QL1110ANKWY4x2 | Isuzu QL1110ANKWY 4x2 |
3 | Wheel base(mm) | 3815 | 3815 |
4 | Allowable total mass at full load (kg) | 10230 | 10230 |
5 | Emission standard | GB VI | GB VI |
6 | Engine power (kWV) | ≥151 | ≥151 |
7 | Passengers (including driver)( persons ) | 3+3 | 3+3 |
8 | Capacity of extinguishing agent (kg) | Water ≥ 2500 Foam ≥ 900 | Water ≥ 3400 |
9 | Fire pump (L/s) | ≥30 | ≥30 |
10 | Fire monitor flow (L/s) | ≥30 | ≥30 |
