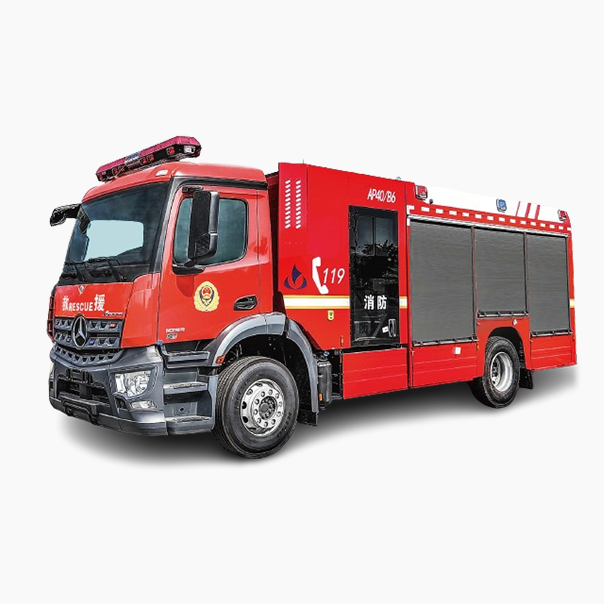

German BEN compressed air foam fire truck is a new generation of combined compressed air foam fire extinguishing system fire truck produced by our company. It uses the world's advanced German BENarocS1833E64X2 chassis, with the original American PTOC1000/150 full-automatic compressed air Class A foam system as the core, and uses new technologies, new processes, new materials to independently develop the latest combat fire truck. It can produce pure water and Class A foam at the same time. It is an ideal fire-fighting equipment for public security fire forces and fire brigades of large and medium-sized industrial and mining enterprises. To extinguish large-scale Class A material fires, it can also be used for extinguishing and handling Class B fires. The overall design, structure, and performance of the maintenance system of the vehicle have reached the level and lifespan requirements of similar imported foreign vehicles.
PARAMETER | Names | Parameters |
1 | Dimensions (mm): Length x Width x Height | 8420x2550x3550 |
2 | Chassis model | Benz Arocs 1833E6 4x2 |
3 | Driving form | 4x2 |
4 | Wheel base(mm) | 4500 |
5 | Engine type | OM470 LA |
6 | Engine power (kWV) | >240 |
7 | Emission standard | GB VI B |
8 | Full load total mass (kg) | 16480 |
9 | Maximum speed (km/h) | 105 |
10 | passengers(persons) | 2+4+3 |
11 | Tank volume (kg) | Water: 3800 Foam: 205 |
12 | Fire pump (L/s) | ≥60 |
13 | Fire monitor(L/s) | ≥50 |
14 | Range(m) | 75 |
15 | compressed airflow (l/s) | ≥75 |
