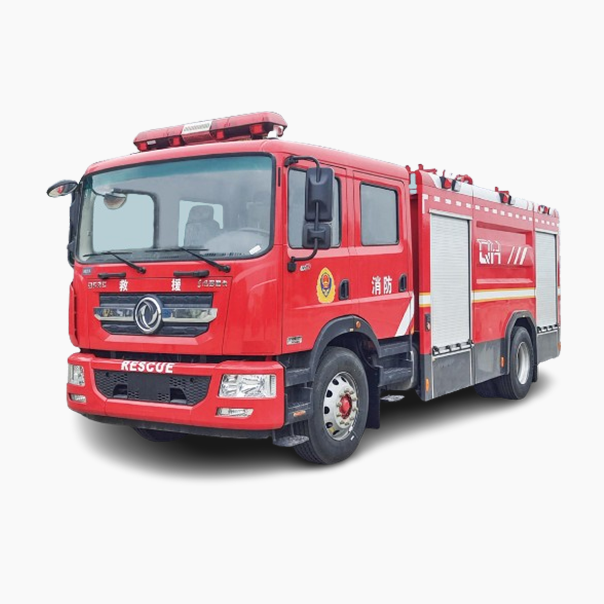

The OHV5170GXFSG70/E6 water tank fire truck adopts Dongfeng Motor Corporation EQ1185DJ9CDF type Class II car chassis, with original double row cab and 3+3 passengers. The vehicle is comfortable and lightweight to drive. The upper part adopts a concealed water tank, and the vehicle's liquid capacity is 7000kg. The equipment box adopts high-quality aluminum alloy rolling shutter doors. Chassis power take-off, engine model B6.2NS6B230, maximum power of 169kW, driven by universal joint, Shanghai Rongshen CB10/40 atmospheric pressure fire pump installed in the rear pump room of the car, can stably output a flow rate of 40L/s at 1.0MPa; The PS8/40W fire monitor produced by Chengdu West Fire Equipment Co., Ltd. is installed on the roof, with a flow rate of 40L/s, corresponding pressure of 0.8MPa, maximum pressure of 1.2MPa, range of 65m, and 360 ° rotation. At the same time, the car has the characteristics of high specific power, strong comprehensive performance, and centralized and easy handling.
PARAMETER | Names | Parameters |
1 | Dimensions: Length x width x height (mm) | 8230x2510x3470 |
2 | Chassis model | EQ1185DJ9CDF |
3 | Wheel base(mm) | 1950+4500+1400 |
4 | Allowable total mass at full load (kg) | 4700 |
5 | Emission standard | GB VI |
6 | Engine power (kWV) | 169 |
7 | Passengers (including driver)( persons ) | 3+3 |
8 | Capacity of extinguishing agent (kg) | Water: 6700 |
9 | Fire pump (L/s) | 40L/s 1.0MPa |
10 | Fire monitor flow (L/s) | 40L/s 0.8MPa |
