Production Description:

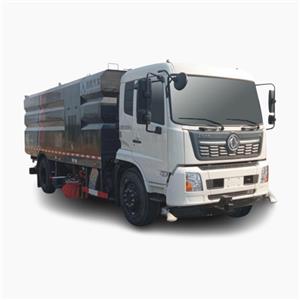

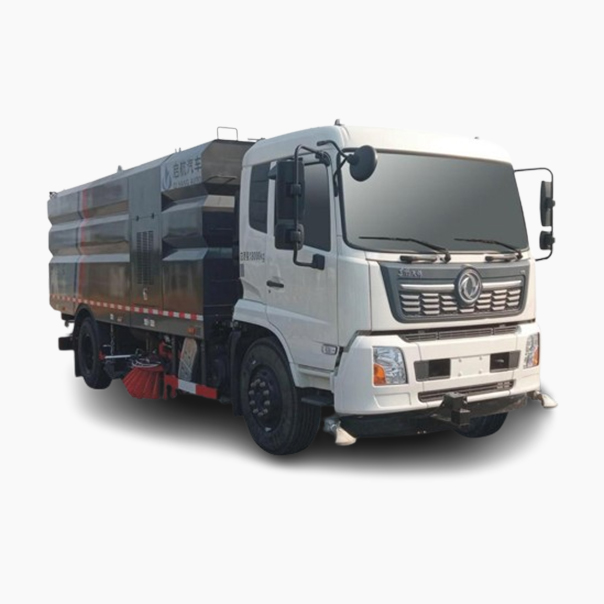

QHV5181TXSDF6/QHV5185TXS226 Sweeper truck is a sanitation equipment tailor-made for the high-end market by Qihang Auto, and itsooweriul functionalty and beautiful industrial appearance make it become the "chief beautician of the city". t is suitable for cleaningsweeping, spraying and dust reduction of city roads, highways, squares, airports, piers, tunnels, bridges, and other cleaning operations.
Performance Features:
1.The box adopts advanced design concepts, an industry-leading volume of fresh water tank and garbage bin, with reasonable ratios andindustry-leading continuous operation time.
2. Optimized pneumatic conveying system, suction nozzle and blower system, which improves the operation efficiency and working capacityof the sweeper.
3. Various operation modes are configured and various operation intensities are set up for selection, so that different operation modes andntenslles can be selected according to diferent working conditions, with a wide range of apblications
4. Pneumatic automatic control ofthe sweeping mechanism, adaotive adlustment otthe height otthe sweeoing disk trom the around, no needfor manualintervention,and reduce work intensity.
5. The whole vehicle adopts touch pre-screen + special controller + bus control, a high degree of automation and inteligence, more friendlyoperation and maintenance experience.
Items | Unit | Model & Parameters | ltems | Unit | Model & Parameters |
Product Model | QHV5181TXSDF6 | Product Model | QHV5181TXSDF6 | ||
Dimensions: Length x width x height | mm | 8630.8940x2500x3100 | Dimensions: Length x width x height | mm | 8660x2500x3180 |
Total Masses | kg | 18000 | Total Masses | kg | 18000 |
Curb weight | kg | 11800 | Curb weight | kg | 11600 |
Payload mass | kg | 6070,6005 | Payload mass | kg | 6270,6205 |
Chassis model/manufacturer | DFH1180EX8/Dongfeng | Chassis model/manufacturer | ZZ1187K501GF1HOWO | ||
Emission standard | GB VI | Emission standard | GB VI | ||
Chassis engine modelmanufacturer | B6.2NS6B230/Cummins | Chassis engine modelmanufacturer | WP4.6NQ220E61/eichai | ||
Rated power of chassis engine | kw | 154 | Rated power of chassis engine | kw | 162 |
Maximum sweeping width | m | Maximum sweeping width | m | 4.2 | |
Sweeping width | m | Sweeping width | m | 3.5 | |
Sweeping speed | km/h | 5~20 | Sweeping speed | km/h | 5~20 |
Sweeping speed | km/h | 3-15 | Sweeping speed | km/h | 3-15 |
Cleaning speed | km/h | 3-20 | Cleaning speed | km/h | 3-20 |
Maximum Sweeping Capacity | ㎡/h | 84000 | Maximum Sweeping Capacity | ㎡/h | 84000 |
Tank volume | M³ | 9 | Tank volume | M³ | 9 |
Dumpster volume | M³ | 7 | Dumpster volume | M³ | 7 |
For the cleaning of fallen leaves and garbage in small public areas such as scenic spots and squares, professional small cleaning vehicles are indispensable. These types of cleaning vehicles are usually designed to be compact and operate flexibly, making them very suitable for working in narrow or complex environments. The cleaning vehicles provided by our store, such as sweeping machines and environmental cleaning vehicles, are equipped with efficient cleaning systems and industrial grade dust filters to ensure cleaning effectiveness and air quality. Combined with strong climbing ability and a large capacity garbage bin, the cleaning work becomes more efficient and convenient. If you are looking for a cleaning vehicle suitable for use in scenic squares, we have multiple products for you to choose from. Welcome to inquire and customize. Please leave your contact information and we will contact you as soon as possible.
