Production Description：

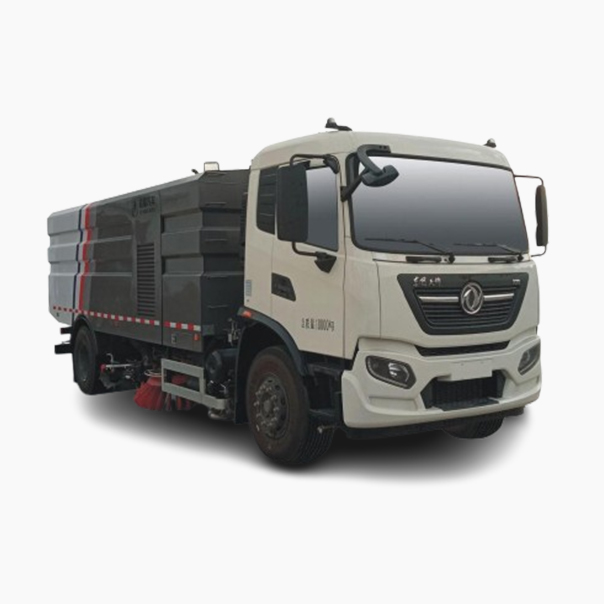

OHV5188TXSDF6 Sweeper truck is a sanitation equipment tailor-made for the high-end market by Qihang Auto, and its powerfufunctionalitv and beautiful industrial appearance make it become the "chief beautician of the city". t is suitable for cleaning, sweepingspraying and dust reduction of city roads, highways, squares, airports, piers, tunnels, bridges, and other cleaning operations.
Performance Features：
Efficient cleaning: Large cleaning vehicles adopt mechanized cleaning methods, which can quickly and efficiently complete large-scale cleaning work, significantly improving work efficiency. For example, yard sweepers can quickly clean up garbage and dust in large places such as yards, warehouses, and factories.
Save manpower: Using large cleaning vehicles can significantly reduce manpower requirements. For example, a large sweeping truck can replace around 15 cleaning workers, significantly reducing labor costs. In addition, large cleaning vehicles can also spray water mist during the cleaning process to reduce dust flying and avoid secondary pollution.
Reduce accidents: The use of large cleaning vehicles can reduce the risk of accidents for sanitation workers during the cleaning process. Automatically identify garbage and obstacles to ensure job safety.
Environmental protection and energy conservation: The enclosed electric sweeper is driven by electric energy, with no exhaust emissions and is environmentally friendly. At the same time, the fully enclosed design effectively prevents garbage splashing and dust flying, protecting the health of operators.
Versatility: Large cleaning vehicles usually have a variety of functions, such as road cleaning, sweeping, high and low pressure cleaning, roadside brushing and spray dust reduction, which are suitable for high cleanliness cleaning operations in urban squares, road surfaces and curbs. In addition, high-end models are equipped with road wetting systems, dust removal devices, and road marking maintenance equipment to meet diverse needs
Items | Unit | Model & Parameters | ltems | Unit | Model & Parameters |
Product Model | QHV5188TXSDF6 | Product Model | QHV5188TXSDF6 | ||
Dimensions: Length x width x height | mm | 8910,8940x2500x3040 | Maximum sweeping width | m | 4.2 |
Total Masses | kg | 18000 | Sweeping width | m | 3.5 |
Curb weight | kg | 12100 | sweeping speed | km/h | 5~20 |
Payload mass | kg | 5770,5705 | Clearing speed | km/h | 3~15 |
Chassis model/manufacturer | DFH1180EX8/Dongfeng | Cleaning speed | km/h | 3~20 | |
Emission standard | GB VI | Maximum Sweeping Capacity | ㎡/h | 84000 | |
Chassis engine modelmanufacturer | D6.7NS6B230/Cummins | Tank volume | M³ | 9 | |
Rated power of chassis engine | kw | 169 | Dumpster volume | M³ | 7 |
Large cleaning vehicles are the secret weapons of urban cleaning. These specialized vehicles are mainly used for collecting and transporting various types of garbage, especially suitable for the treatment of household waste in residential areas. They can compress and crush garbage, thereby increasing its density, reducing its volume, and greatly improving the efficiency of garbage collection and transportation.
There are various types of large cleaning and sanitation vehicles, including compression type, self dumping type, swing arm type, self loading and unloading type, sealed type, and pull arm type, each with its unique uses and advantages.
Significant significance: Large scale sanitation vehicles have been widely used in various fields such as environmental sanitation, municipal administration, industrial and mining enterprises, and property communities. They can effectively avoid secondary pollution during loading, unloading, and transportation, and are a major invention in the field of specialized vehicles.
