Water tank fire truck is an important firefighting equipment, mainly used for fire fighting and water supply support. Here are its specific functions:
1. Independently extinguish fires
The water tank fire truck is equipped with a large capacity water storage tank and water spray devices such as water guns and cannons, which can quickly transport water and firefighters to the fire scene and independently extinguish the fire.
2. Water supply and relay water supply
At the scene of a fire, water tank fire trucks can directly extinguish the fire by drawing water from a water source, or supply water to other fire trucks and firefighting spray equipment. In water scarce areas, it can also be used as a water supply truck to provide continuous and stable water source support for fire scenes.
3. Multi functional fire extinguishing
The water tank fire truck is not only suitable for fighting general substance fires, but also can be used together with foam fire-fighting equipment to spray foam to extinguish oil fires. In addition, the medium and low pressure pump and the high and low pressure pump water tank fire truck can also directly supply water from a long distance, supply water to high-rise buildings, and use spray water to put out oil fires and electrical equipment fires.
4. Transport equipment and firefighters
In addition to fire extinguishing functions, water tank fire trucks can also transport firefighting equipment and firefighters, providing personnel and material support for fire fighting.
5. Adapt to different fire scenarios
Water tank fire trucks are classified into various types based on the type of water pump and water capacity, such as ordinary water tank fire trucks, medium and low pressure pump water tank fire trucks, high and low pressure pump water tank fire trucks, etc., which can adapt to the firefighting needs of different fire scenes.
In short, water tank fire trucks play an irreplaceable role in fire fighting, and their multifunctionality and efficiency provide strong support for fire scenes.

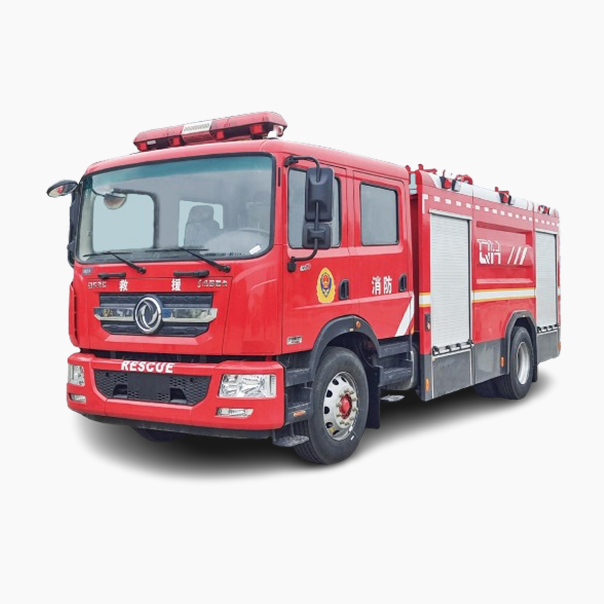

The QHV5170GXFSG70/E6 water tank fire truck adopts Dongfeng Motor Corporation EQ1185DJ9CDF type Class II car chassis, with original double row cab and 3+3 passengers. The vehicle is comfortable and lightweight to drive. The upper part adopts a concealed water tank, and the vehicle's liquid capacity is 7000kg. The equipment box adopts high-quality aluminum alloy rolling shutter doors. Chassis power take-off, engine model B6.2NS6B230, maximum power of 169kW, driven by universal joint, Shanghai Rongshen CB10/40 atmospheric pressure fire pump installed in the rear pump room of the car, can stably output a flow rate of 40L/s at 1.0MPa; The PS8/40W fire monitor produced by Chengdu West Fire Equipment Co., Ltd. is installed on the roof, with a flow rate of 40L/s, corresponding pressure of 0.8MPa, maximum pressure of 1.2MPa, range of 65m, and 360 ° rotation. At the same time, the car has the characteristics of high specific power, strong comprehensive performance, and centralized and easy handling.
